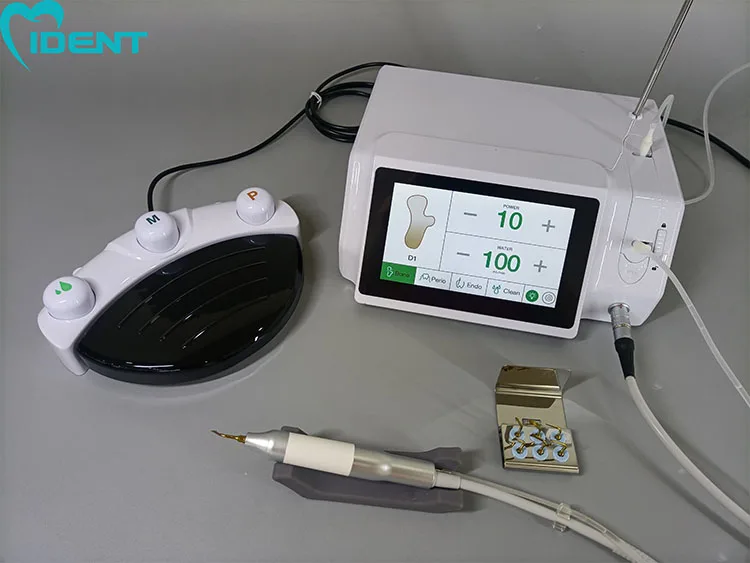

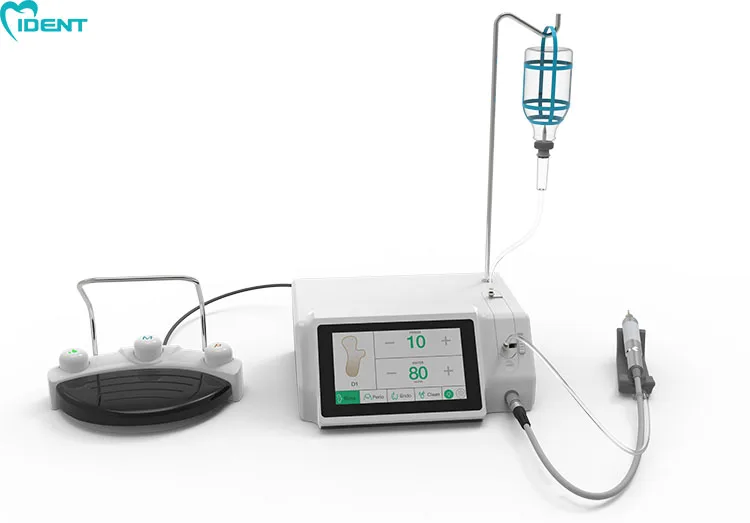

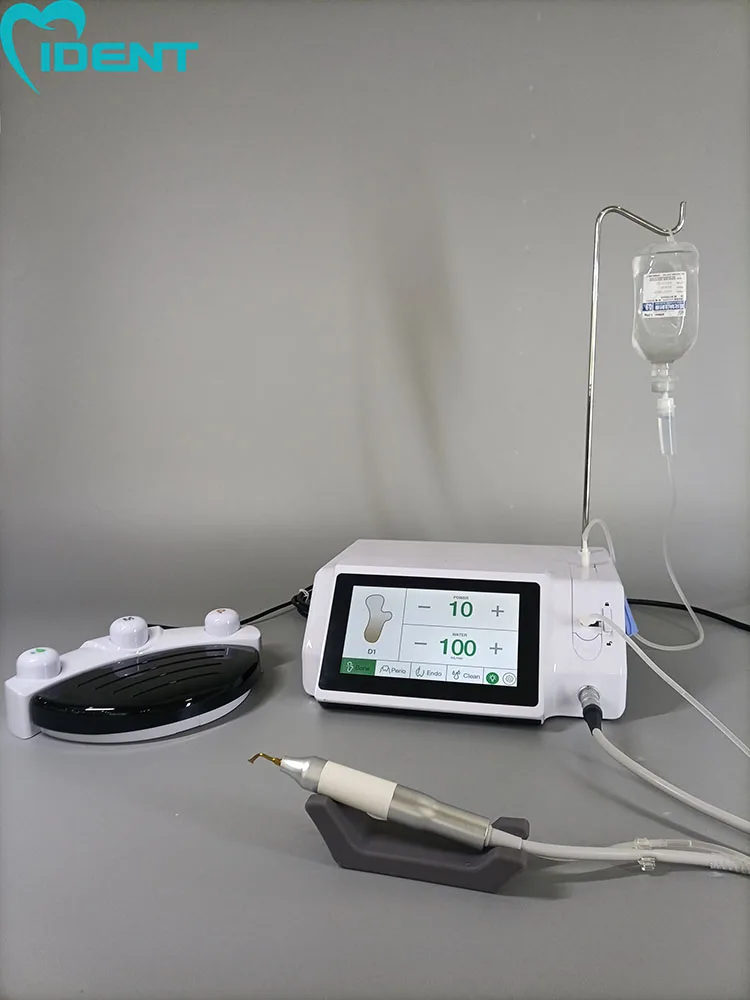

YN-UBS01

Specifications:
Product number:YN-UBS01
Power supply voltage: AC 100-240V
Power frequency: 50/60Hz
Input power: 150VA
Host machine dimensions: 286mm × 252mm × 113mm
Host device weight: 4.35 kg
Working frequency: 24kHz to 36kHz
Water flow rate: 30~110ml/min
operating environment
a) Temperature: +5°C to +40°C
b) Relative humidity: 30%~75%
c) Atmospheric pressure: 70kPa to 106kPa

拖拽生成HTML邮件-拉易网-4

1. Integrated functionality. It contains bone crushing, periodontal, root canal, and cleaning functions. 4 program modes that match 6 different job tips. Surgical parameters automatically store memories and do not need to be set frequently, and the software algorithm is human and intelligent.


2. Touch the color screen. Using 7-inch true color capacitive touch screen, visual interface, user-friendly touch, support multi-touch, responsive. The screen self-illuminates, there is no viewing angle limit, the brightness of the screen can be adjusted, and the use is not affected under strong or low light conditions.

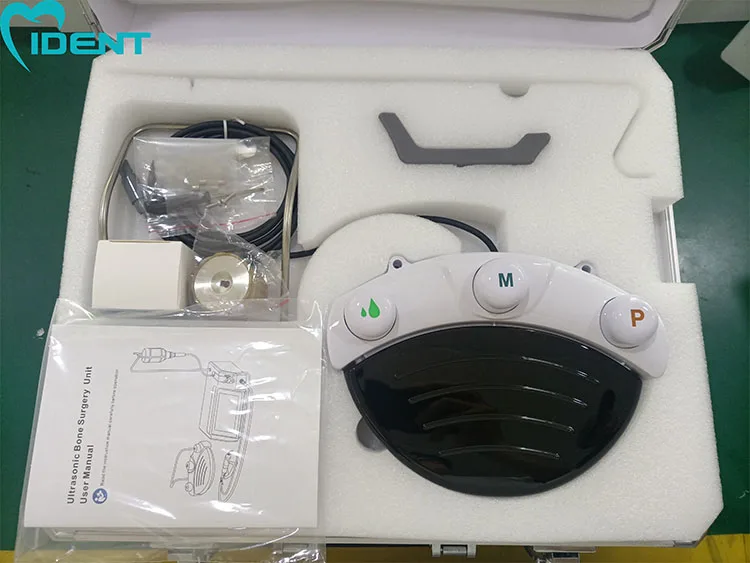

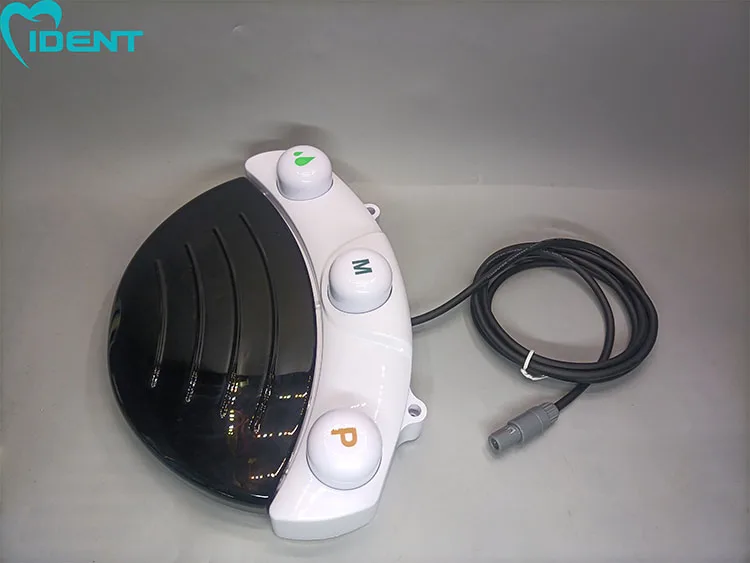

3. versatile pedals. The artificial intelligence foot control algorithm, ultrasound start and stop control is smooth, and can freely switch different surgical mode, water quantity and power control, and the control effect is more intuitive.


4. Bone cutting, periodontal, root canal and cleaning mode can be provided with saline or sterile water to avoid re-aspiration and reduce cross contamination.


5. The ultrasonic transducer uses high-performance wafers, the host uses low-power intelligent control algorithms, the ultrasonic output control is more precise, and the overall power consumption and operating temperature are lower.


6. Built-in worm pump design with precise water control. An integrated shell design with smooth lines of appearance.


7. Built-in 10 common error prompts and alarm interfaces, prompt alerts for misoperations, and better protection of the entire machine.

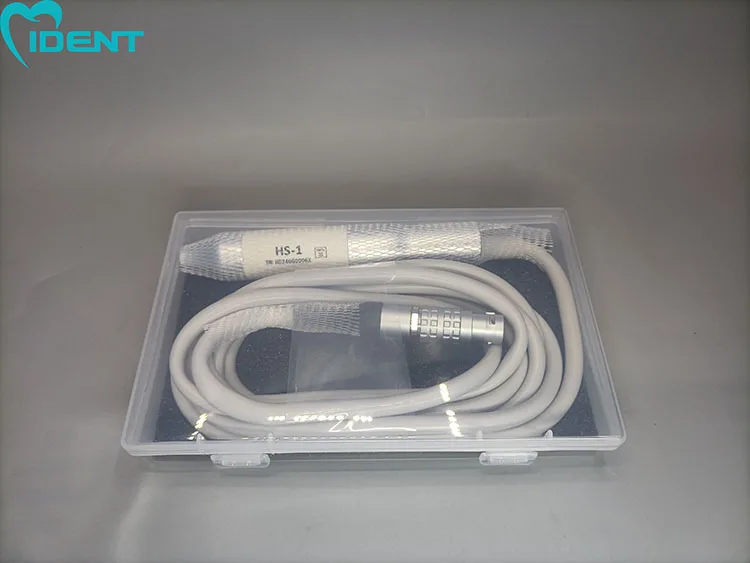

8. The ultrasonic transducer handle can be sterilized at high temperature and pressure, reducing the risk of cross infection, and physicians are more comfortable with surgery.
